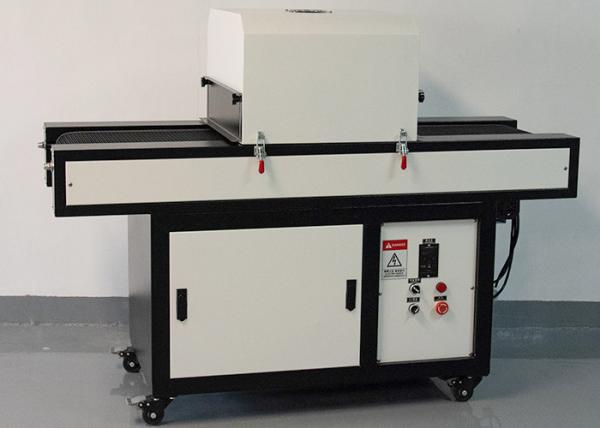

365nm UV LED Curing Machine
Product advantages
LED UV curing machine is mercury free, ozone free, green, environmental protection, is the best
alternative to the traditional UV light source.
The cold light source of LED UV curing machine has no thermal radiation, and the surface
temperature of the carrier is low, which completely solves the problem of thermal damage that
has existed for a long time in light and liquid crystal production.Especially suitable for liquid crystal
edge sealing, film printing and other low temperature requirements.
LED UV curing machine without preheating, instantly lit up, instantly reach 100% power UV output.
LED UV curing machine has high energy, stable light output, uniform spot and improved quality.
The service life of LED UV curing machine is more than 10 times that of traditional UV curing
machine, about 20,000-25,000 hours.
LED UV curing machine is simple and easy to integrate and customizable.
LED UV curing machine service life is not affected by the number of switches.
Technical Parameters
| Brand | YI JIANG | Phase | single-phase |
| Voltage | 220V | Total power | 1800W |
| Irradiation area | 23*300mm | Machine material | Combined sheet metal |
| Machine size | L2000mm*W600mm*H1750mm |
| Lamp power | 800W | Conveyor belt material | Teflon |
| Lamp life | 10000 hours | Cooling way | Water cooling |
| High inlet and outlet | 0-200mm | Conveyor belt to ground height | 760mm |
| Inlet and outlet length | 400mm | Light box length | 800mm |
| Mesh belt width | 400mm | Main peak length | 365nm |
| Color | Milky | Decoration method | Spray |
Note:Can be customized according to customer requirements
